ProFlex Gable Shape Roof system, 390mm (15.35") Square Truss Construction. Canopy and Walls included.
Please contact a sales representative at (562)906-6415 to discuss your facilities needs and to receive design assistance, specifications and pricing.
PFGR1
In stock
$44,879.99

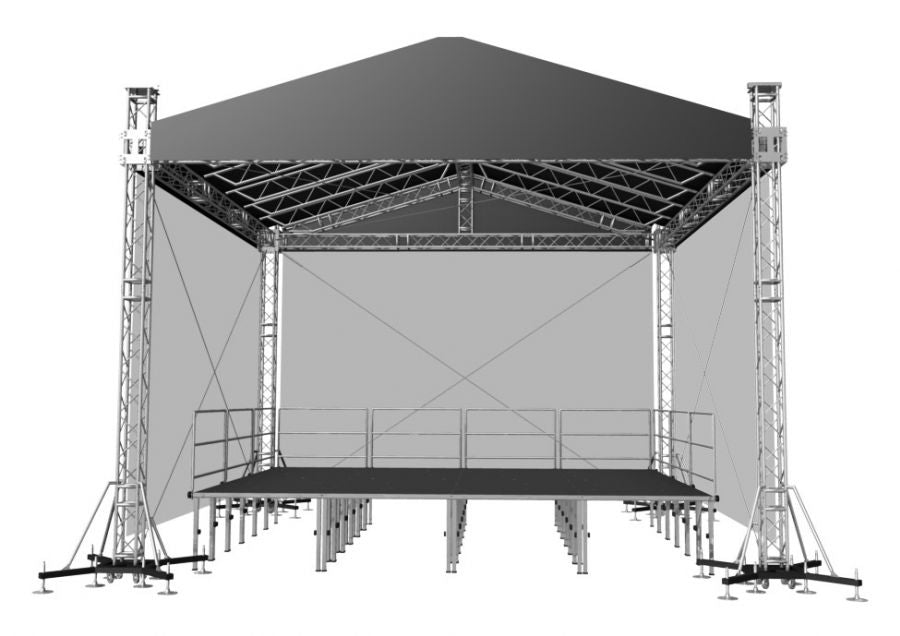

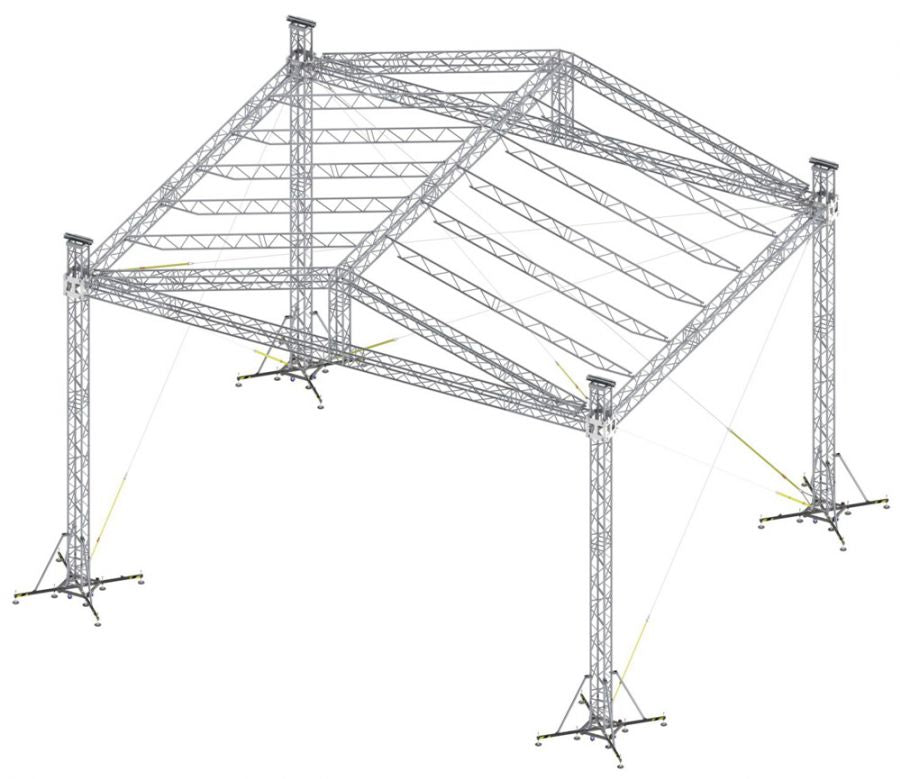

ProFlex Gable Stage Roof systems are contructed from a
390mm (15.35") Square truss construction with a wall thickness of 3mm(0.12"). These kits come standard with roof sheathing that is constructed of high quality flame retardent PVC material and is available is several colors. 3 Side screens made of air-permeable material, which protect the stage against rain, etc. also come standard. ProFlex Gable Stage Roofs are available in 3 made to order options. Detailed structural analysis and load calculations are availabl at our customer's request. Custom options are also available. Please note* the stage shown and chain hoists are not included in this kit. Please view size options above.
390mm (15.35") Square truss construction with a wall thickness of 3mm(0.12"). These kits come standard with roof sheathing that is constructed of high quality flame retardent PVC material and is available is several colors. 3 Side screens made of air-permeable material, which protect the stage against rain, etc. also come standard. ProFlex Gable Stage Roofs are available in 3 made to order options. Detailed structural analysis and load calculations are availabl at our customer's request. Custom options are also available. Please note* the stage shown and chain hoists are not included in this kit. Please view size options above.

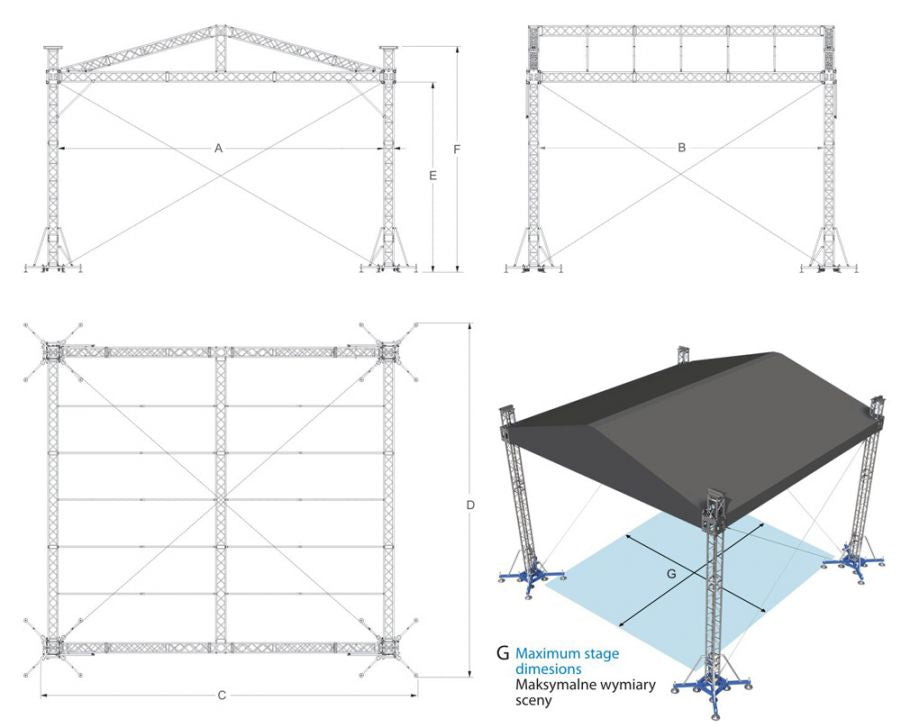

Metric
|
size |
A |
B |
C |
D |
E |
F |
|
|
8,5x8 |
8,63 |
6,13 |
11,29 |
8,80 |
7,88 |
9,24 |
8x8 |
|
10,5x8 |
10,63 |
8,13 |
13,29 |
10,80 |
7,88 |
9,24 |
10x8 |
|
12,5x10 |
12,63 |
10,13 |
15,29 |
12,80 |
7,88 |
9,24 |
12x10 |
Imperial
|
size |
A |
B |
C |
D |
E |
F |
|
|
27.8' x 26.2' |
26.2' |
19.6' |
36' |
28.8' |
25.5' |
29.5' |
26.2' x 26.2' |
|
34.4' x 26.2' |
34.7' |
26.2' |
43.3' |
32.8' |
22.9' |
29.5' |
32.8 x 26.2 |
|
41' x 32.8' |
41.3' |
32.8' |
49.8 |
41.9' |
25.5' |
9,24 |
12x10 |
