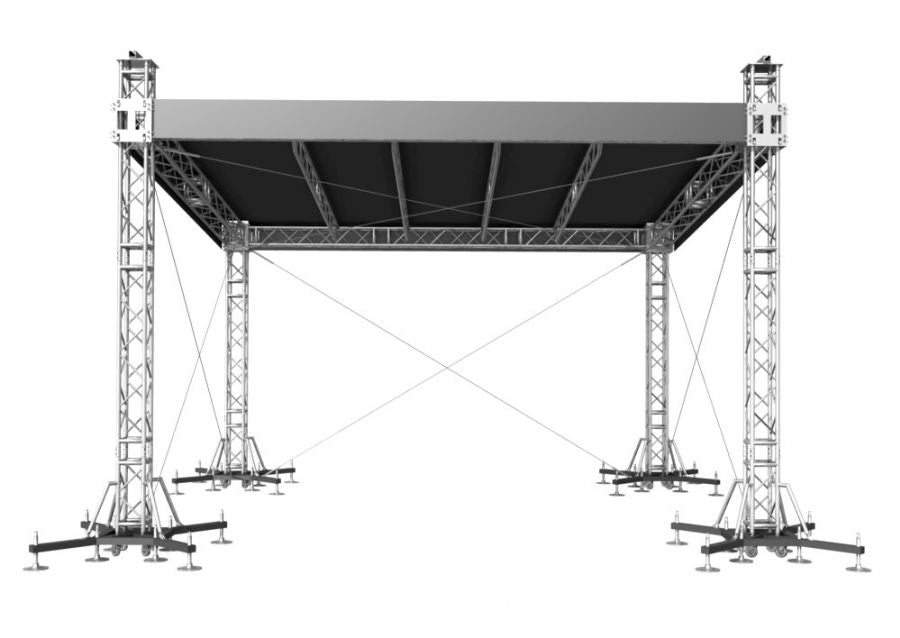

ProFlex Straight Shape Roof system, 390mm (15.35") Square Truss Construction. Canopy and Walls included.
Please contact a sales representative at (562)906-6415 to discuss your facilities needs and to receive design assistance, specifications and pricing.
PFSTR1
In stock
$43,449.99
$31,239.99

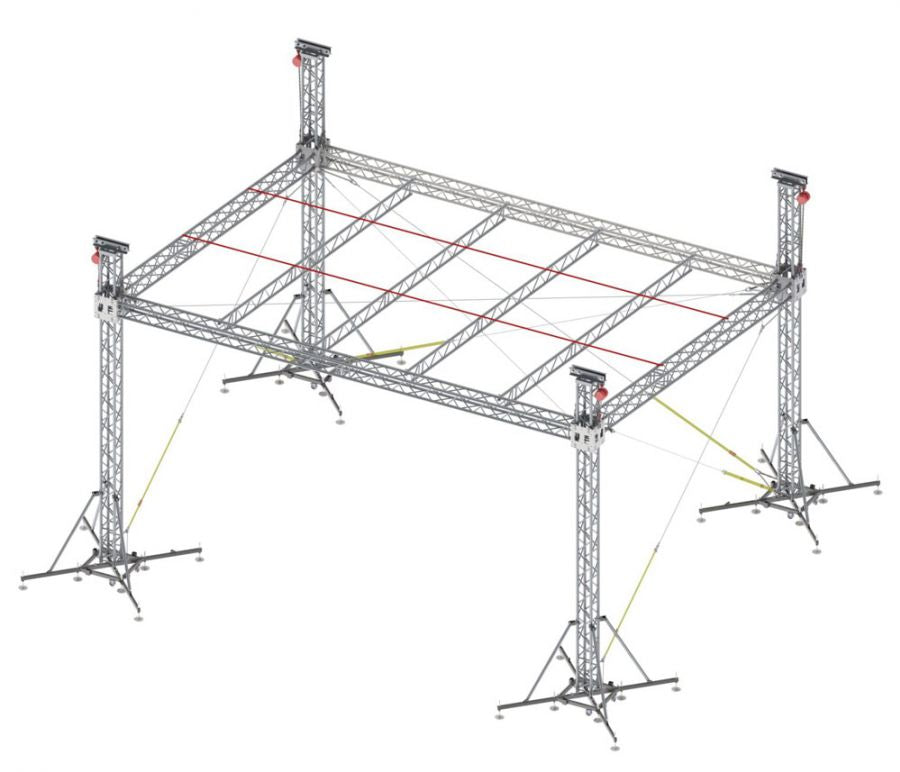

ProFlex Straight Stage Roof systems are contructed from a 390mm (15.35") Square truss construction with a wall thickness of 3mm(0.12"). These kits come standard with roof sheathing that is constructed of high quality flame retardent PVC material and is available is several colors. 3 Side screens made of air-permeable material, which protect the stage against rain, etc. also come standard. ProFlex Straight Stage Roofs are available in 3 made to order sizes. Detailed structural analysis and load calculations are available at our customer's request. Custom options are also available. Please note* the stage shown and chain hoists are not included in this kit. Please view size options above.

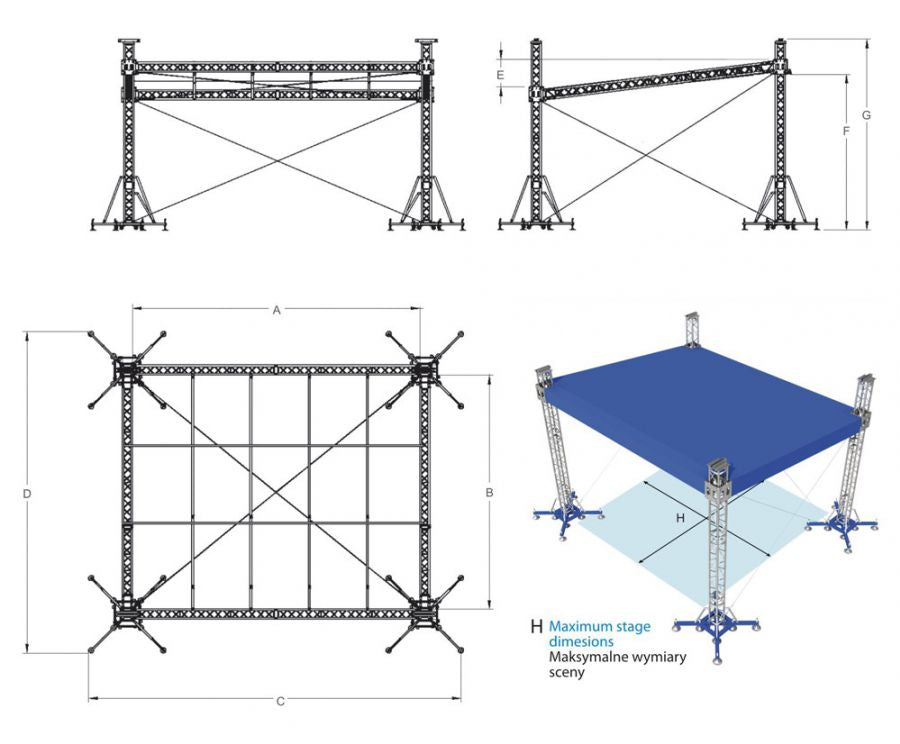

Metric
|
size |
A |
B |
C |
D |
E |
F |
G |
max. stage dimensions |
|
6 x 4 x 5 |
6,14 |
4,49 |
8,55 |
6,98 |
0,58 |
4,48 |
5,42 |
6 x 4 |
|
8 x 6 x 7 |
8,14 |
6,47 |
10,62 |
8,69 |
0,86 |
6,74 |
7,97 |
8 x 6 |
|
10 x 8 x 8 |
10,14 |
8,49 |
12,62 |
10,93 |
0,81 |
7,79 |
8,42 |
10 x 8 |
Imperial
|
size |
A |
B |
C |
D |
E |
F |
G |
max. stage dimensions |
|
19.6' x 13.1' x 16.4' |
19.68' |
13.12' |
28.05' |
22.9' |
1.90' |
14.69' |
17.81' |
19.6' x 13.1' |
|
26.2' x 19.6' x 22.9' |
26.2' |
19.6' |
32.8' |
26.2' |
2.6' |
19.6' |
22.9' |
26.2' x 19.6' |
|
32.8' x 26.2' x 26.2' |
32.8' |
26.2' |
39.3' |
32.8' |
2.62' |
22.9' |
26.2' |
32.8' x 26.2' |
